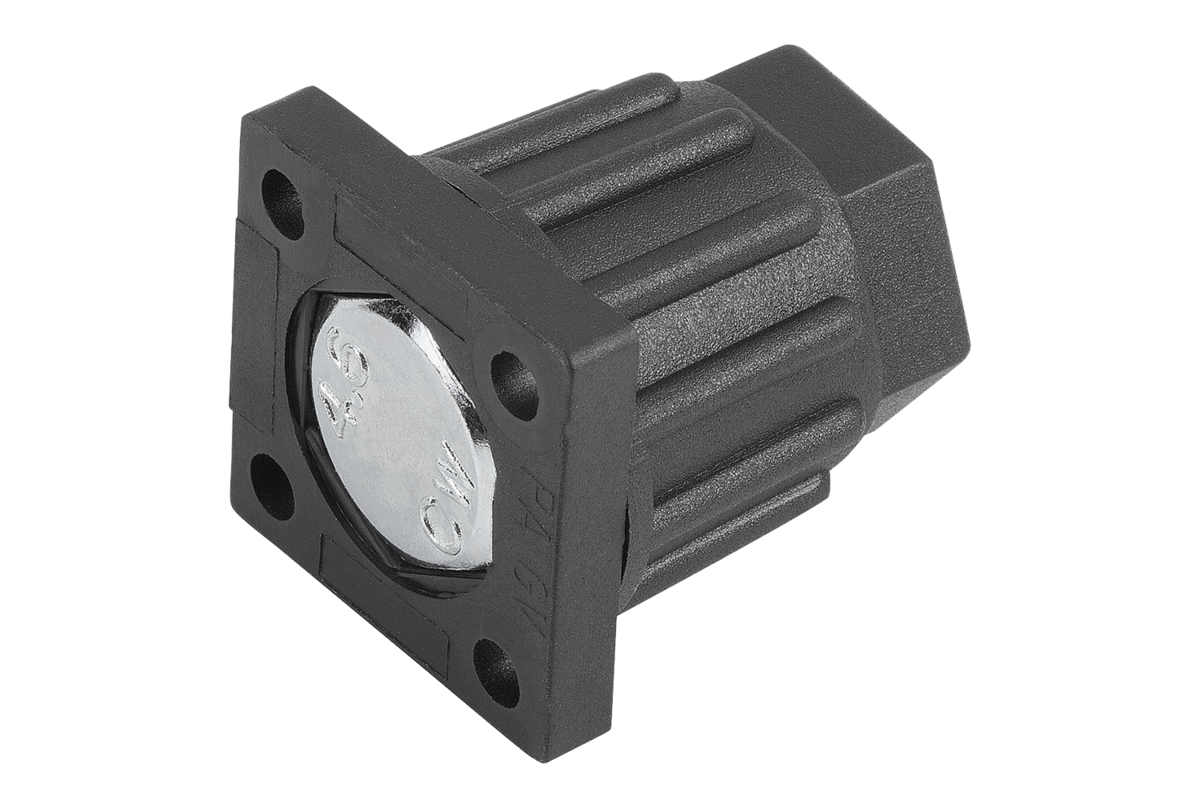

Machine foot
height-adjustable
thermoplastic
- For mounting on smooth surfaces
- Equipment foot height is adjusted by turning the nut by hand or spanner
- Material: housing fibreglass reinforced thermoplastic, hex head screw steel
Sales unit
kr71.33
plus sales tax
Added to your shopping cart
Designation
Machine foot
Version 1
height-adjustable
Main
material
thermoplastic
Component
material
steel
D=plate diameter
30
H1=Total height
35-50
H=Height
35-50
A
30
B
20,5
D2
for
countersunk screw
M4
Load rating
max. kN
(static load only)
1,5
SW1
22
~ CONFLICT MINERALS 3TG status
no 3TG content
~ CP65 substance 2 cancer
Soots, tars, and mineral oils
~ PFAS free?
Unknown
~ REACH SVHC-free?
Yes
~ RoHS conformity
Yes, without exemption
~ TSCA 6(H) conformity
Yes
Description
Material
Body fibreglass reinforced thermoplastic.
Hexagon head screw steel.
Hexagon head screw steel.
Version
Body black.
Hexagon head screw galvanised.
Hexagon head screw galvanised.
Note
The flat top flange and sunken screw head make these levelling feet ideal for mounting on smooth surfaces.
The foot height is adjusted by turning the base nut by hand or spanner.
The foot height is adjusted by turning the base nut by hand or spanner.
Drawing reference
1) support flange
2) nut
2) nut
