Designation

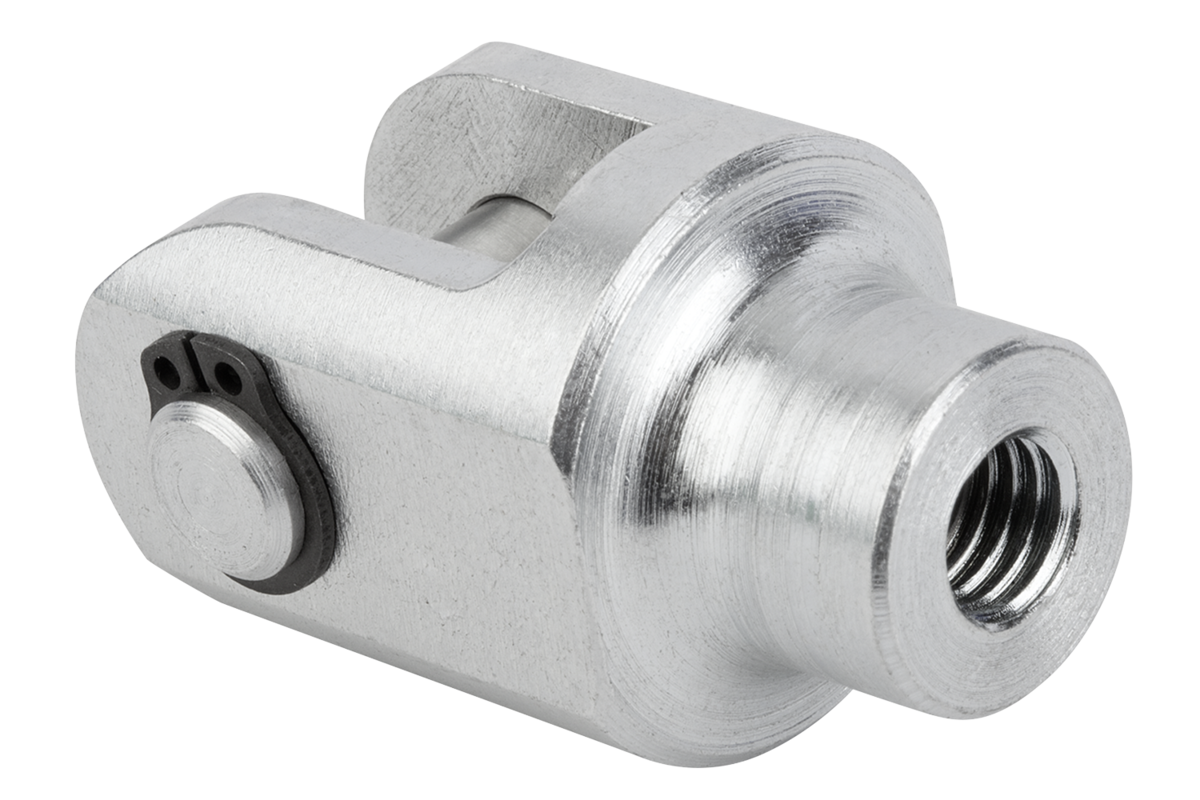

Clevis joint
Version 1
for rod ends
Main material
steel
D=outside diameter
38
B
45
C
25
D1
20
D2
M20
D3
50
F static kN
43
L
90,5
L1
51,9
L2
68
L3
29,5
R1
22,5
W°
9
~ Battery relevance?
No
~ CE relevance?
No
~ CP65 substance 2 CAS-No.
no CAS-No.
~ CP65 substance cancer
Soots, tars, and mineral oils
~ CP65 warning required?
Yes
~ Conflict Minerals status
Unknown
~ Dual-Use No.
Not listed
~ Magnet relevance?
No
~ PFAS free?
Yes
~ REACH SVHC-free?
Yes
~ REACH version
04.02.2026 - 253 substances
~ RoHS conformity
Yes, without exemption
~ RoHS version
2011/65/EU incl.2015/863/EU
~ Safatey Data Sheet relevance?
No
~ TSCA conformity
Yes
~ TSCA version
10/2021
~ WEEE-No.
N

Description

Material
Clevis and pin, steel 1.7225
Version
Galvanised.
Note
These clevises were developed as accessories for rod ends. The clevis opening size C was chosen to accept rod end joints.

Suitable for rod ends 27625, 27626, 27627 and 27628.
In order to download our CAD models, you must log in first. If you have not created an account yet, please register under "My Account" (right side of the screen) and follow the instructions.
